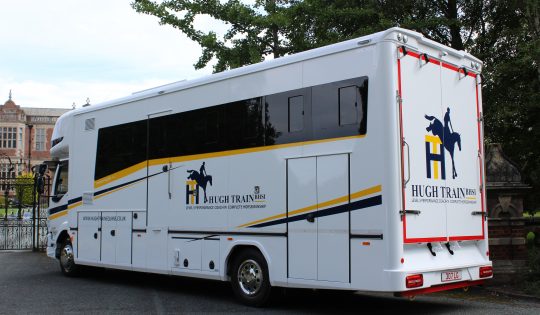

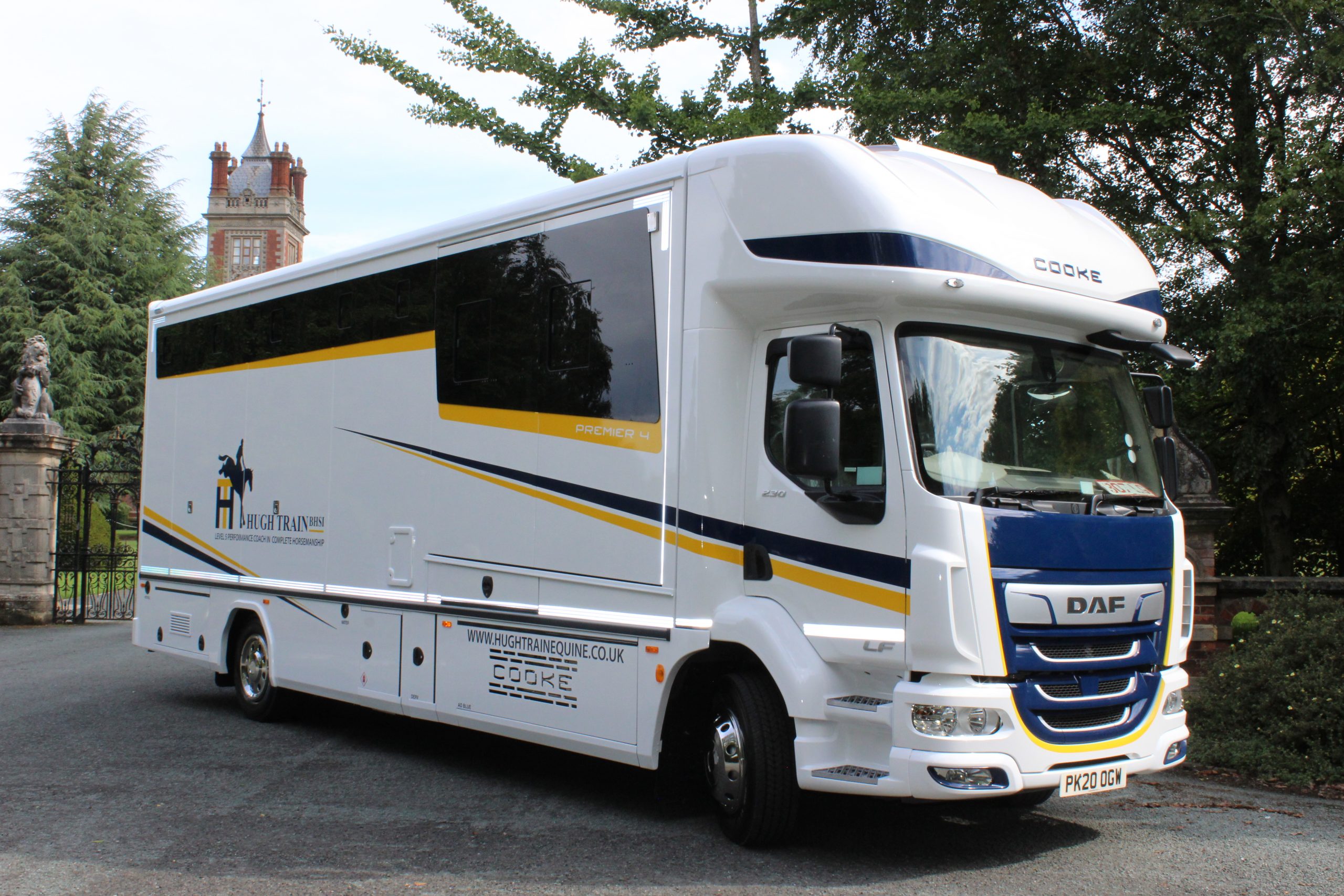

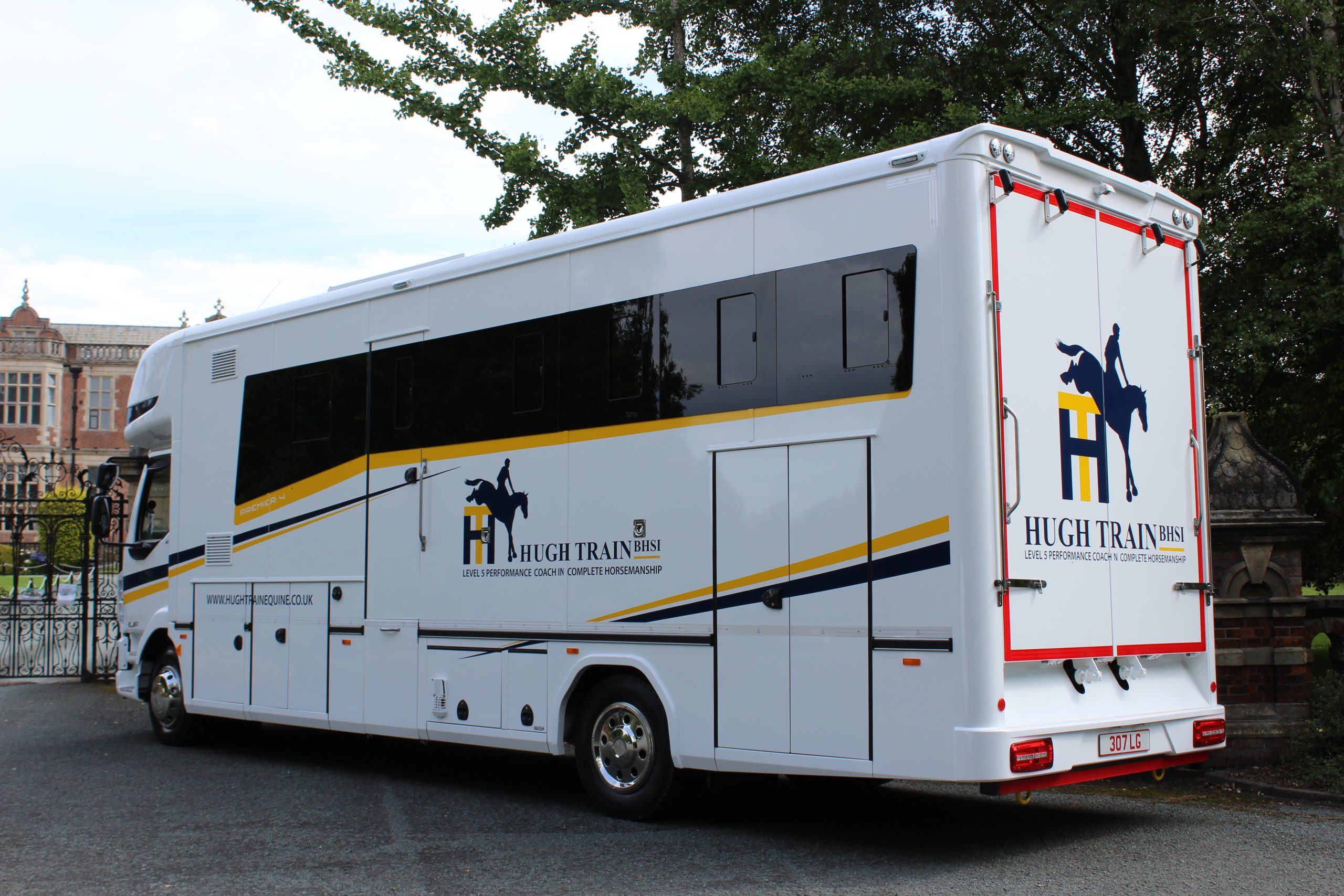

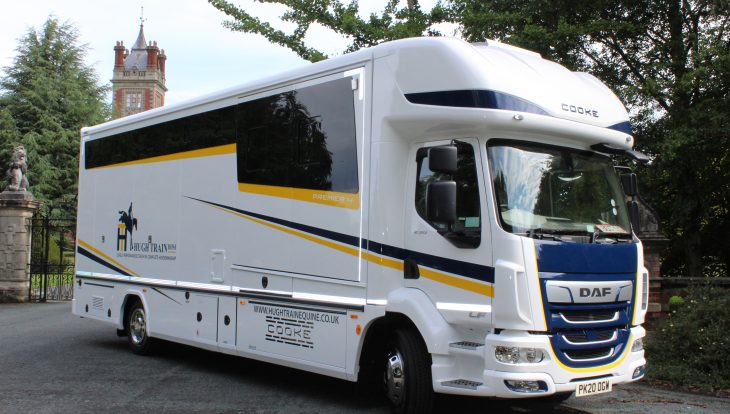

14 TONNE

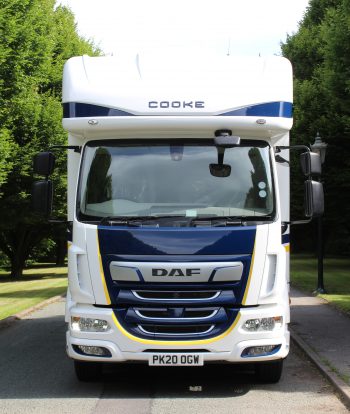

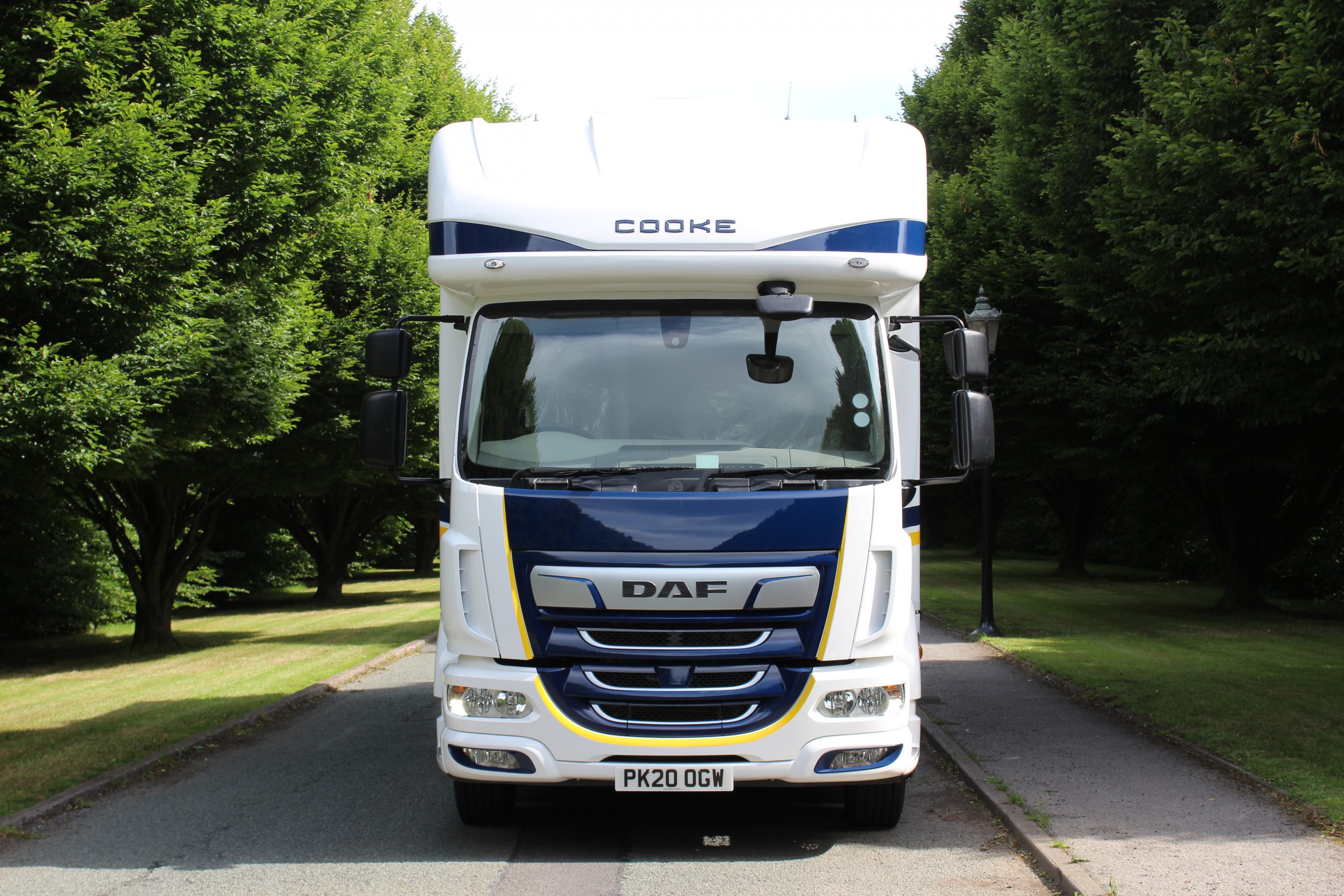

The 14 tonne horsebox from Cookes Coachbuilders is another example of fine craftmanship and beautiful design. Boasting four stalls complete with a hydraulic ramp, bonded teardrop windows, and dual camera system, this horsebox makes a comfortable home on the road. Find the complete specification and optional extras below.
Media
Body
- All aluminium coach-built body and full tilt cab
- One piece glass fibre, fully insulated and lined including roof vents, 2 in horse area, 1 in living area and 1 in front Luton
- Rear ramp lined with moulded rubber, under slung ramp springs, ramp light and GRP guide gates (centre poles – padded)
- Under floor lockers wherever possible and gas bottle carrier
- Under floor storage with tack locker accessible from both sides
- Under floor water tank including horse shower
- Nearside groom’s door with window and fold away step
- 2 x 140A leisure batteries with Victron battery charging system with Adaptive Charge Technology
- Victron LED digital voltmeter for leisure battery
- 1 solid or metallic colour exterior paintwork
- All vehicle lights LED, including side marker lights and high-power awning lights (1 each side)

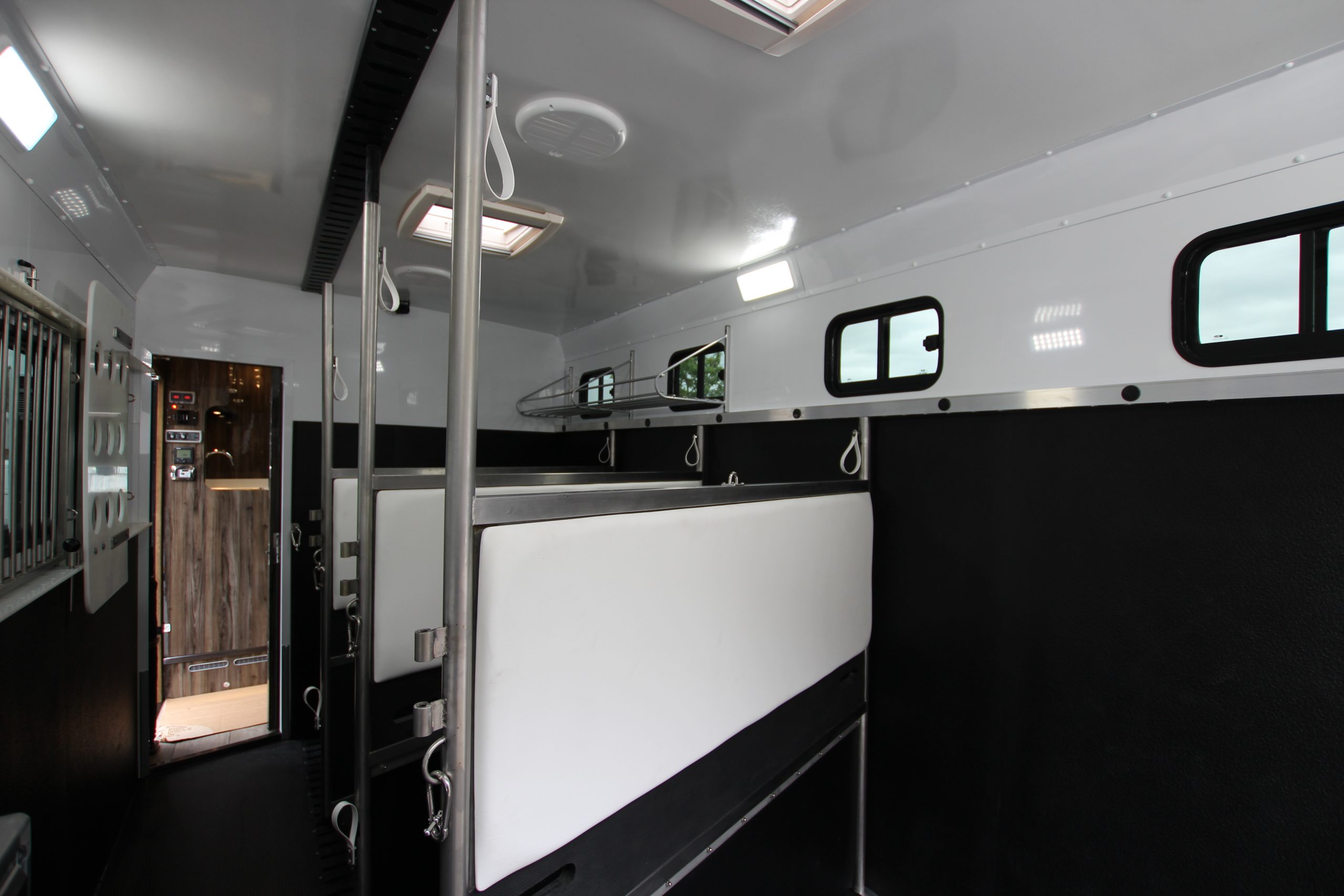

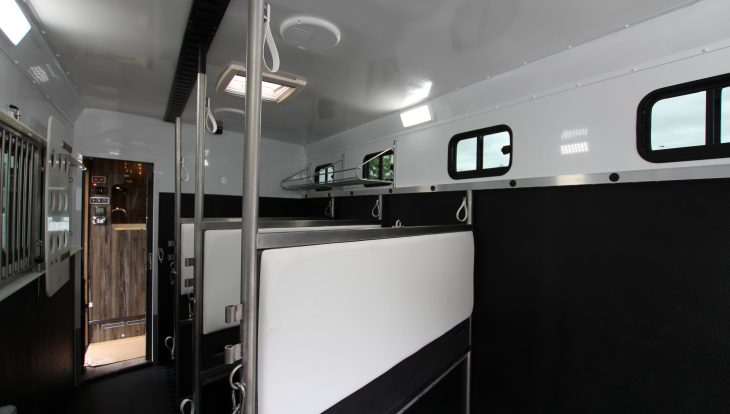

Horse Area

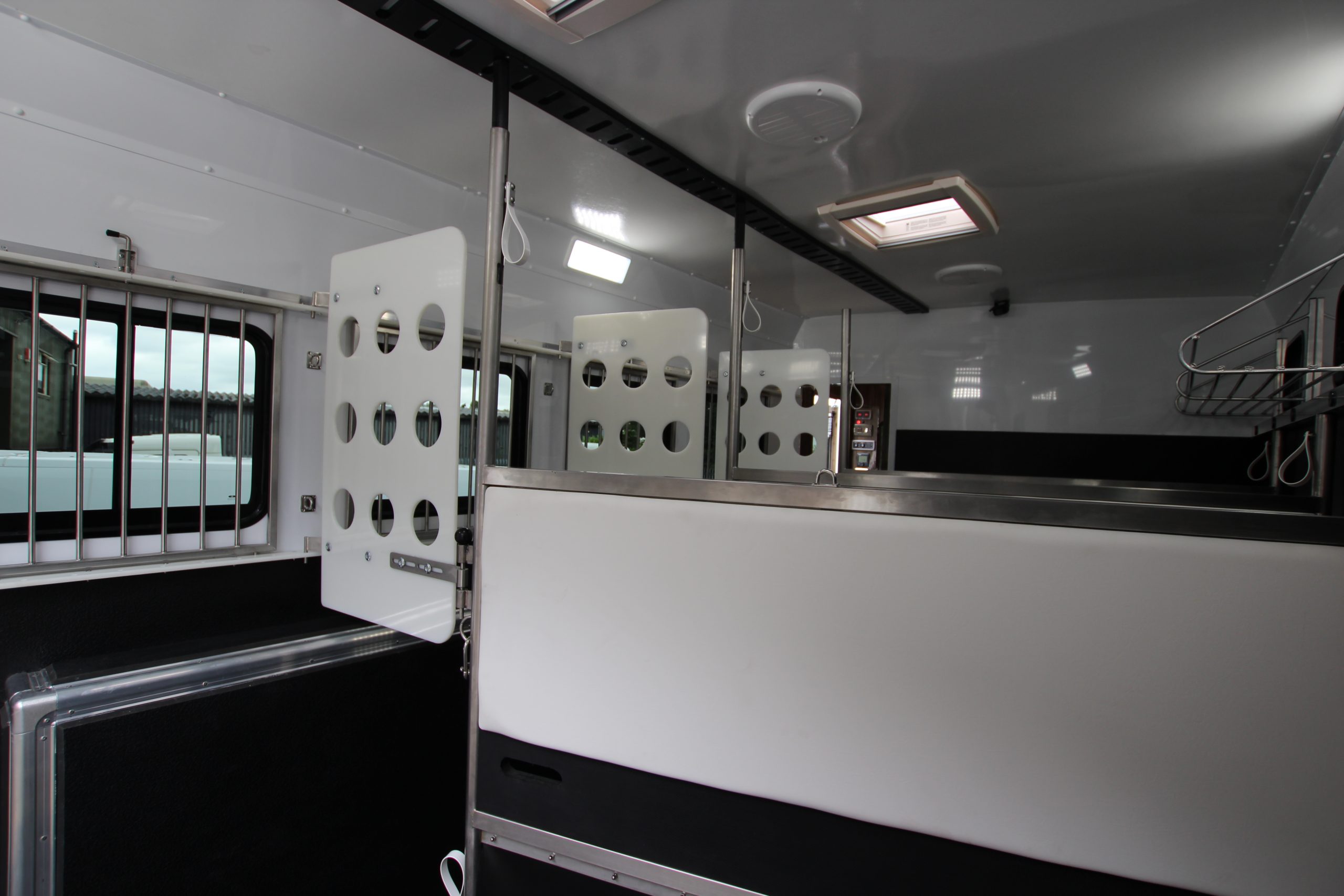

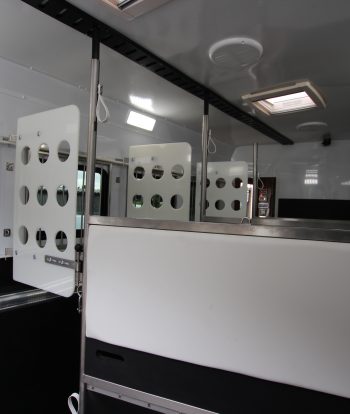

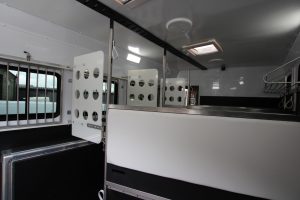

- 3 x Fully adjustable stainless steel H partitions, with detachable blinker boards (white HDPE with holes)
- Stainless steel window bars and interior tie rings
- Fully drainable aluminium planked floor with one piece heavy duty rubber matting
- Interior sides lined 6’ high with EVA rubber matting and white-faced aluminium
- Interior lights 24v LED including night travel lights
- Blanket rack 5’ long- no door or pull-down shutter
- Horse area camera
- Hydraulic ramp
- Slimline horse area tack locker with flat top and radius corners
- Hot and cold horse shower
- Defra approved ventilation system
- Temperature and Humidity Data Log and Recorder
Wet Room
- Fully waterproof wet room, walls lined in a choice of finishes
- Fitted with shower, shower tray, sink and vanity unit
- Cassette swivel toilet
- Waterproof toilet roll holder, towel ring and robe hooks
- Bonded window
- Recessed ceiling lights

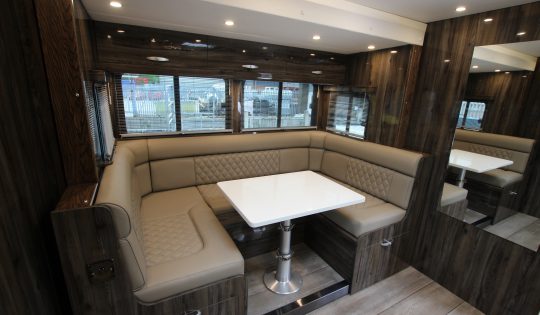

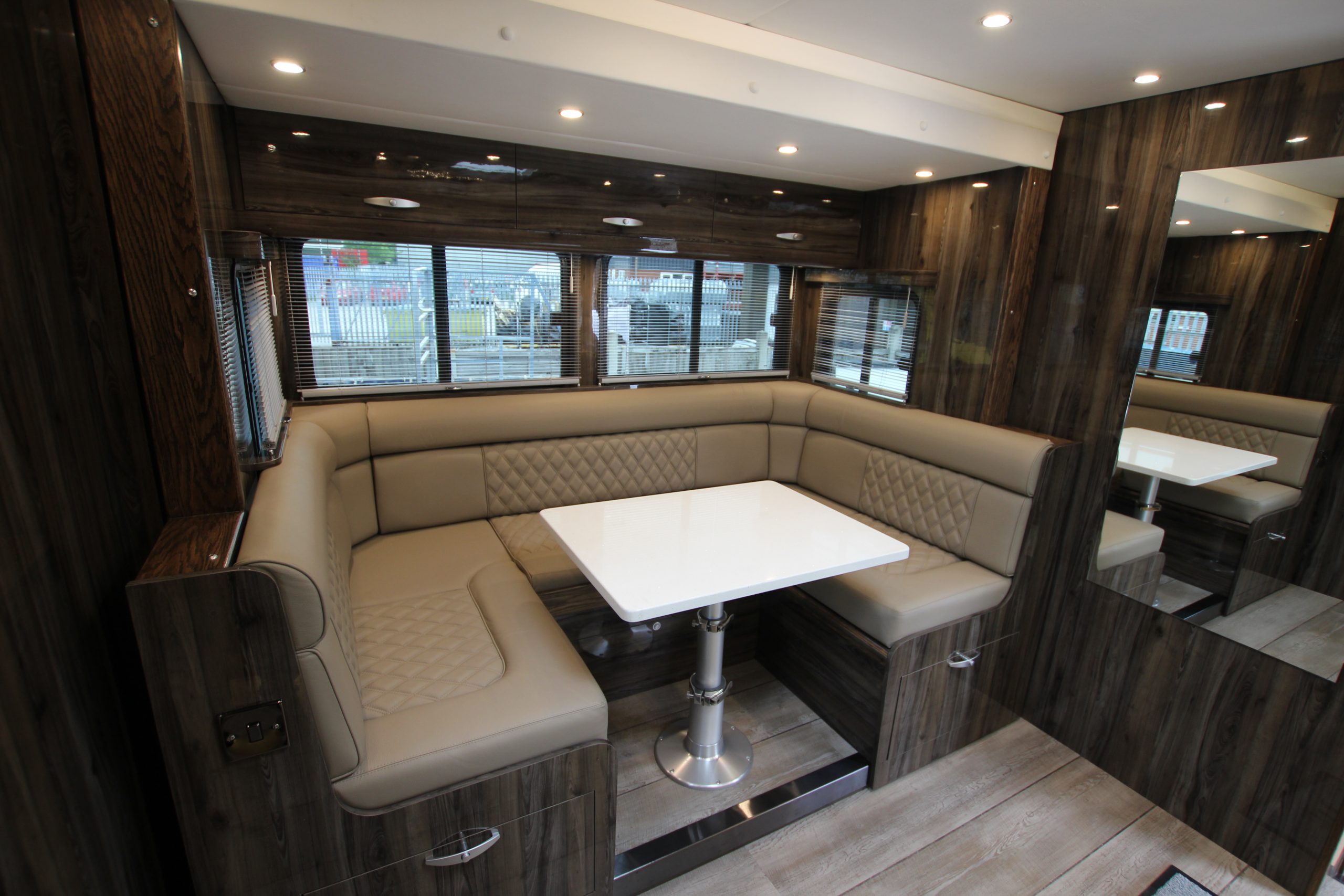

Living Area
- To seat and sleep 4 persons
- One double bed over Luton and seating makes another
- Leather upholstery with cab seats trimmed to match

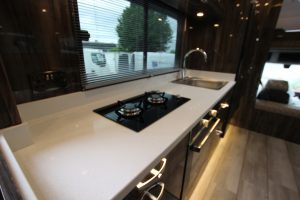

- Hob, oven and grill, slimline fridge freezer, microwave and sink
- Bespoke cupboards incorporating built-in 24” TV
- Walls lined to coordinate with living units
- Marine blinds
- Truma Combi Hot Water and Hot Air Blower
- Telescopic table
- Mains sockets including USB charging connections
- Large mirror
- LED downlights, cupboard lights and bed spots
Features
- Remote start 2.5Kw Petrol Generator
- Solar roof panel with Victron Charge Control Unit
- Slimline horse area tack locker with flat top and radius corners
- Hydraulic ramp
- Hot and cold horse shower
- Bonded teardrop windows
- Built to DEFRA standard
- Dual camera system – reversing and horse area
- Slide out drawer in nearside slimline tack locker
- Digital entry for groom’s door and tack locker
Optional Extras
- Remote Start 3.5Kw Petrol Generator
- Boot Drawers in slide out seating
- Removable saddle pole
- Horse Area Near Slide Slimline Tack Locker
- Additional roof vents and fans
- Satellite TV
- Additional Paintwork and exterior graphics
- Remote start generator
- Additional Partitions
- Corian/Silestone Worktop
- Flush toilet and tank
- A full list of optional extras is available upon request
Media
Body
- All aluminium coach-built body and full tilt cab
- Electric pull out-side in living area
- One piece glass fibre, fully insulated and lined including roof vents, 2 in horse area, 1 in living area and 1 in front Luton
- Rear ramp lined with moulded rubber, under slung ramp springs, ramp light and GRP guide gates (centre poles – padded)
- Skirt lockers wherever possible including gas bottle carrier
- Under floor storage with tack locker accessible from both sides
- Under floor water tank including horse shower
- Nearside groom’s door with window and fold away step
- 2 x 180A leisure batteries with Victron battery charging system with Adaptive Charge Technology
- Victron LED digital voltmeter for leisure battery
- 1 solid or metallic colour exterior paintwork
- All vehicle lights LED, including side marker lights and high-power awning lights (1 each side)
Horse Area
- 3 x Fully adjustable stainless-steel partitions, with either solid white propylex detachable blinker boards or stainless-steel grills
- Stainless steel window bars and interior tie rings
- Fully drainable aluminium planked floor with one piece heavy duty rubber matting
- Interior sides lined 6’ high with EVA rubber matting and white-faced aluminium
- Interior lights 24v LED including night travel lights
- Stainless steel blanket rack with lift up doors
- Horse area and reverse camera
- Hydraulic ramp
- Hot and cold horse shower
- Full height slimline horse area tack locker over two-stall with twin opening doors and digital/ remote lock
- Defra approved ventilation system
- Temperature and Humidity Data Log and Recorder
Wet Room
- Quadrant shower cubicle
- Cassette toilette
- Vanity unit with mirror doors
- Mains heated towel rail
- Recessed ceiling lights
Living Area
- To seat and sleep minimum 5 persons
- One double bed over Luton and seating makes another plus groom’s bed above shower
- Leather upholstery with cab seats trimmed to match
- Hob, gas oven and grill, slimline fridge freezer and sink
- Bespoke cupboards incorporating built-in 24” TV
- Walls lined to coordinate with living units
- Marine blinds
- Combi Truma hot water and hot air blower – Gas and mains
- Telescopic table
- Mains sockets including USB charging connections
- Large mirror
- LED downlights, cupboard lights and bed spots
- Fire extinguisher
Features

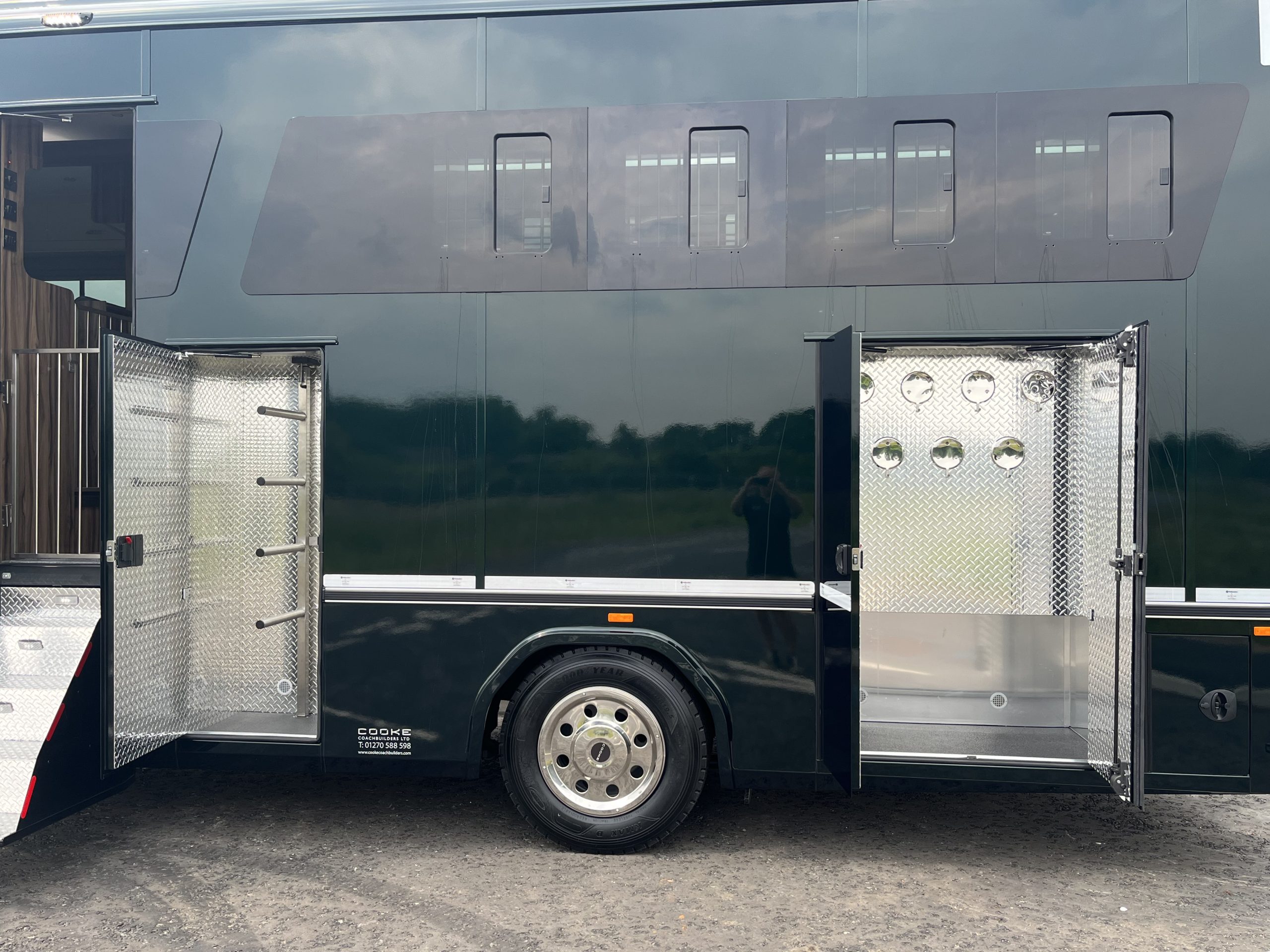

- External Saddle Locker
- Bed above shower with roof vent, mains socket and USB port
- Hydraulic ramp
- Digital entry for groom’s door and nearside tack locker
- Hot and cold horse shower
- Bonded windows
- Dual climate air conditioning
- Full height slimline horse area tack locker over two-stall with twin opening doors and digital/ remote lock
Optional Extras
- Additional roof vents and fans
- Larger TV
- Additional Paintwork and exterior graphics
- Air conditioning
- Additional partitions
- Continuous flow hot water system
- Awning
- A full list of optional extras is available upon request
